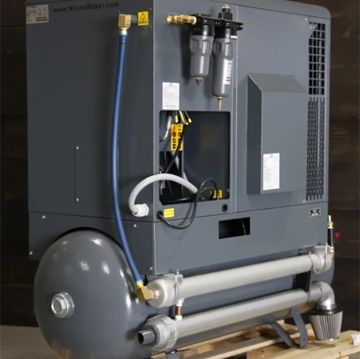

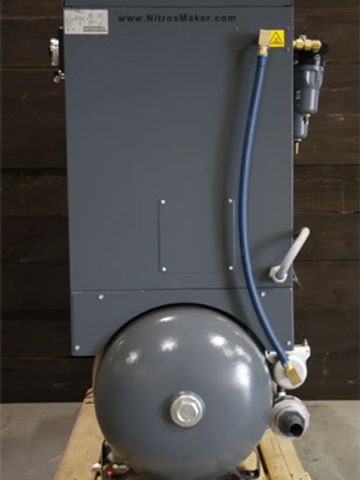

Brownie’s NitroxMaker™ is a nitrox station designed specifically for ease of use. This system is capable of producing and analyzing nitrox mixtures from 21%-40% with the turn of a dial. Simply choose the appropriate mixture and the NitroxMaker™ produces the gas using a high-efficiency, semi-permeable membrane system that operates at a remarkably low temperature. The low pressure air for the membrane is produced by a Atlas Copco rotary screw compressor with an integrated dryer.
Built on 10hp Atlas Copco Rotary Screw Compressor
Integrated refrigerated dryer and horizontal receiver tank with drain
Dual low-pressure filters remove excess moisture, particulate and oil, ensuring long membrane
Oxygen analyzer provides accurate measurement of nitrox produced.
Dial adjustable regulator for quick, easy mixture changes.
Service panels allow easy access to internal components.
NitroxMaker™ makes Nitrox mixtures of your choice at the turn of a dial without the need for pure oxygen. State-of-the-art membranes make NitroxMaker™ the preferred low temperature options for dive operators and won’t void the warranty on your high-pressure
Built in 71 gallon receiver
63" x 28" x 53" 900 pounds
Call me to discuss one for your business
10 cfm at 40% Nitrox
12.5 cfm at 36% Nitrox
17 cfm at 32% Nitrox
13 cfm at 40% Nitrox
16 cfm at 36% Nitrox
23 cfm at 32% Nitrox
17 cfm at 40% Nitrox
21 cfm at 36% Nitrox
28 cfm at 32% Nitrox
The screw compressor is rated for continuous duty and will last for thousands of hours with proper minimal maintenance. The integrated dryer and supplemental filtration removes moisture, oil and particulate matter from the air produced to keep the membrane in top performance. The Nitrox Maker comes in 4 sizes to match the majority of high pressure compressors used by diving businesses.
